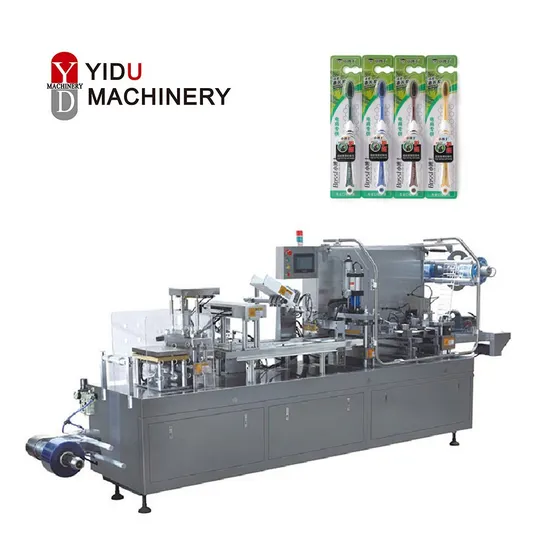

Dpp

Basic Info.

Model NO.	DPP-260A
Automatic Grade	Automatic
Application	Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Stationery
Type	Forming Filling Sealing Machine
Forming Species	Blister Forming
Forming Function	Forming, Filling, Seal
Driven Type	Electric
Material Type	Solid
Packaging	Blister Packing
Packaging Material	Paper Card+Plastic
Cutting Frequency	10-20 Time/Min
Max Forming Area	250X180 mm
Max Forming Depth	35mm
Total Power	380V 50Hz 5.5kw
Air-Compressor	More Than 0.22m3/Min
Compressed Air Consumption	≥0.3m3/Min
Dimension	4500×800×1650mm
Weight	1800kg
Transport Package	Wooden Case
Specification	4200*800*1650mm
Trademark	YIDU
Origin	Wenzhou
HS Code	8422303090
Production Capacity	100 Set/ Year

Packaging & Delivery

Package Size450.00cm * 80.00cm * 165.00cm Package Gross Weight1800.000kg

Product Description

FEATURES
1. Automatic forming blister,cutting, dropping paper card, heat sealing, automatic product output and scrap collection.
2. Accurate temperature control module, PVC fragments and insufficient air pressure auto stop and automatic fault source for damaged electrical parts.
3. Human-machine interface and PLC control system, and is equipped with counting, starting password, fault reminder, maintenance reminder and other functions.


PRODUCT DESCRIPTION


DETAILED PHOTOS
MACHINE APPLICATION

SAMPLES
PACKING &SHIPPING

OUR ADVANTAGE

Machines are wrapped with plastic film for protection


Standard wooden case packaging for exporting


Loading goods by forklift


Ningbo China / Shanghai China
